Zandex Industries

B Series

For wide ranging applications including dampers or hoppers that require pressurized stoppage.

Thrust : 980N - 9.8kN

Pressurized stoppage available. (with "Thrust Limiter")

Structure	Totally enclosed
Power	3-PH 50Hz/60Hz/60Hz 200V/200V/220V(400V/400V/440V) Special power rating available.
Insulation	Class E
Time rating	20-30%ED

Motor Cylinder Model	Thrust (N)	Speed 50Hz/60Hz (mm/s)	Mechanical Stroke (mm)	Motor Output (kW)
BB100K	980	75/90	100-700	0.4
BGB300K	2940	29/35	100-700	0.4
BK500K	4900	23/28	200-1000	0.4
BL500K	4900	46/56	200-1000	0.6
BL1T	9800	23/28	200-1000	0.6
BM1T	9800	47/56	200-1000	1.1

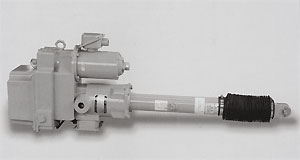

Low speed type, with "Positioner" can limit SW, potentiometer or encoder available as an option. Suitable for dampers, hoppers, valve drives, etc.

Thrust : 980N - 39.2N

Pressurized stoppage available. (with "Thrust Limiter")

Structure	Totally enclosed and Outside
Power	3-PH 50Hz/60Hz/60Hz 200V/200V/220V (400V/400V/440V) Special power rating available.
Insulation	Class E
Time rating	10%ED
Positioner	4-point cam limit SW Potentiometer (1kΩ)

Motor Cylinder Model	Thrust (N)	Speed 50Hz/60Hz (mm/s)	Mechanical Stroke (mm)	Motor Output (kW)
BJ100K	980	10/12	200-700	0.13
BJ300K	2940	10/12	200-700	0.13
BJ500K	4900	10/12	300-1000	0.4
BJ1T	9800	10/12	300-1000	0.4
BJ2T	19600	12/14.4	300-1000	1.1
BJ4T	39200	12.5/15	300-1000	2.0

For big load applications.

Thrust : 19.6kN - 294kN

Pressurized stoppage available. (with "Thrust Limiter")

Structure	Totally enclosed
Power	3-PH 50Hz/60Hz/60Hz 200V/200V/220V (400V/400V/440V) Special power rating available.
Insulation	Class E
Time rating	25%ED

Motor Cylinder Model	Thrust (kN)	Speed 50Hz/60Hz (mm/s)	Mechanical Stroke (mm)	Motor Output (kW)
DGM 2T	19.6	25/30	300-1000	0.75
DGN 2T	19.6	60/72	300-1000	1.5
DGM 4T	39.2	12.5/15	300-1500	0.75
DGN 4T		25/30		1.5
DGO 4T		42/50		2.2
DGN 6T	58.8	15/18	300-2000	1.5
DGO 6T		25/30		2.2
DGP 6T		45/54		3.7
DGN 10T	98	10/12	300-2000	1.5
DGO 10T		15/18		2.2
DGP 10T		25/30		3.7
DGQ 10T		40/48		5.5
DGO 16T	157	8.3/10	300-2000	2.2
DGP 16T		15/18		3.7
DGQ 16T		25/30		5.5
DGR 16T		35/42		7.5
DGP 30T	294	8.3/10	300-2000	3.7
DGQ 30T		12.5/15		5.5
DGR 30T		16.6/20		7.5
DGS 30T		25/30		11

Simple and most economical.

Thrust : 980N - 9.8kN

With positioning cam limit SW.

Structure	Totally enclosed
Power	3-PH 50Hz/60Hz/60Hz 200V/200V/220V (400V/400V/440V) Special power rating available.
Insulation	Class E
Time rating	20-30%ED

Motor Cylinder Model	Thrust (N)	Speed 50Hz/60Hz (mm/s)	Mechanical Stroke (mm)	Motor Output (kW)
H100L, HP100L	980	25/30	100-600	0.1
H100H, HP100H	980	83/100		0.3
H300L, HP300L	2940	25/30		0.3
H300H, HP300H	2940	83/100	200-700	0.6
H500L, HP500L	4900	25/30		0.3
H500H, HP500H	4900	50/60		0.6
H1T, HP1T	9800	25/30		0.6
